Go2 Battery
Go2 Battery from Unitree Robotics
Description

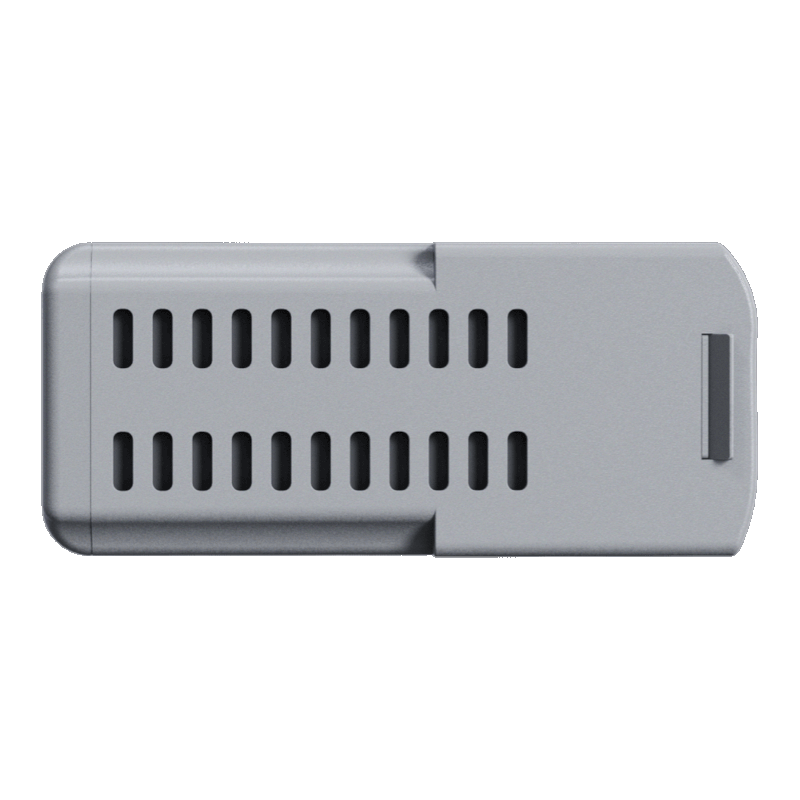

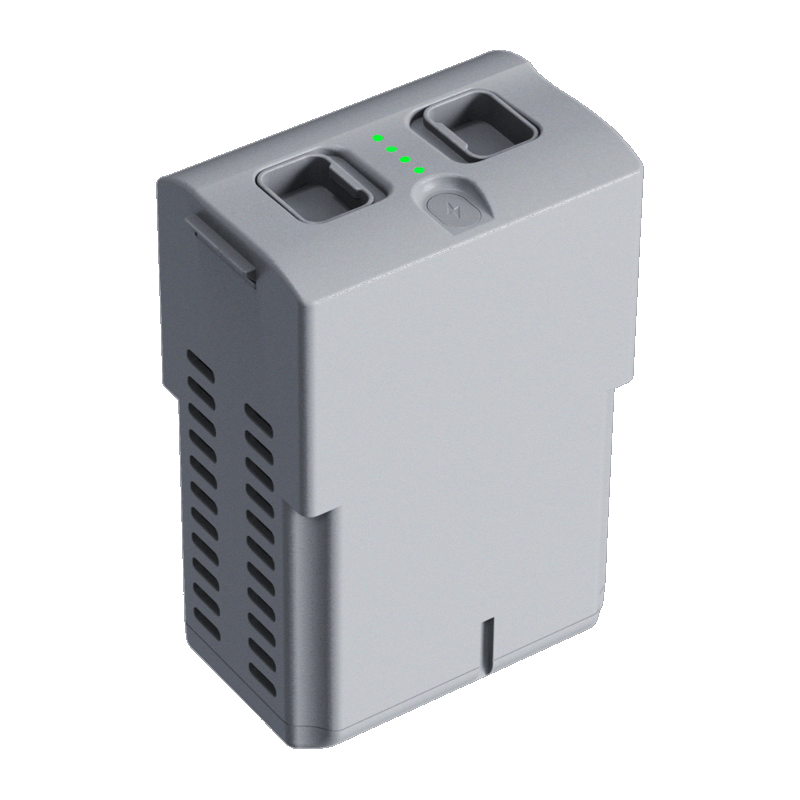

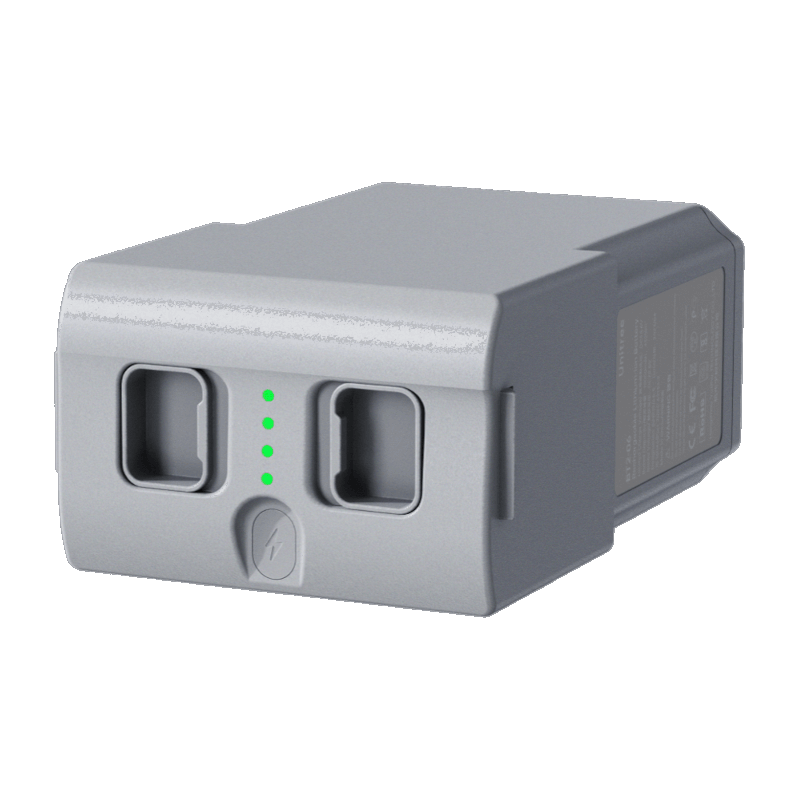

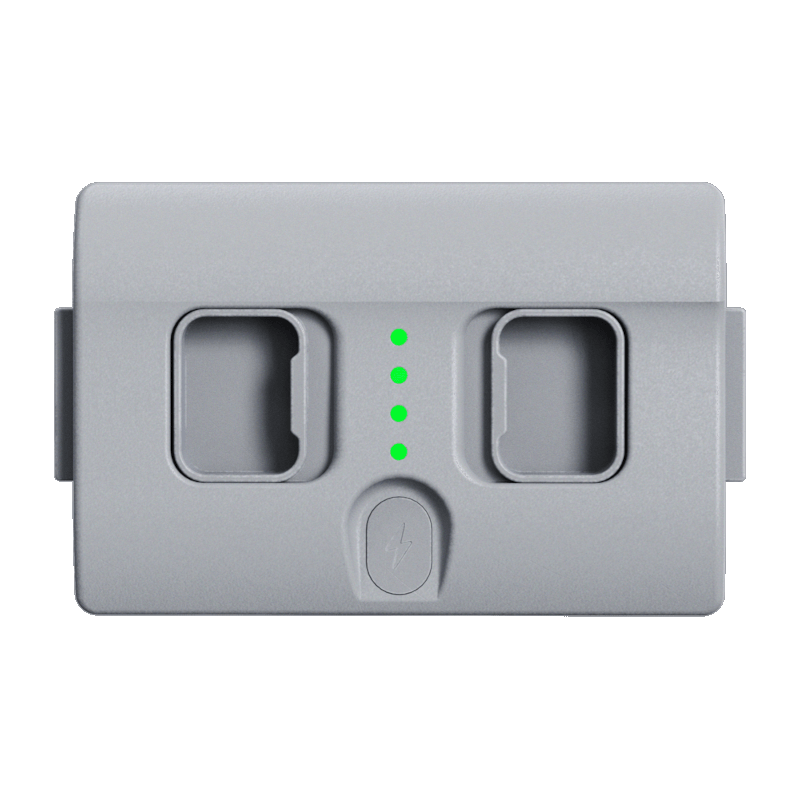

Unitree Go2 Battery
Fast Charging, Long-lasting Standby
Provide Strong Power to Your Robots
High Performance, Long Endurance
This battery uses high performance battery cell and the Unitree self-developed battery management
system(BMS) to provide the strong power for Go 2 quadruped robot. The battery has 2 versions,
BT2-05(the standard version) and BT2-06(the long endurance version).
Eight fold protection, safety guarantee
| Battery storage and self-discharge protection | Balenced charge protection | Overcharge protection | Charging temperature protection |
| Charging current protection | Short circuit protection | Over discharge protection | Battery load detection protection |

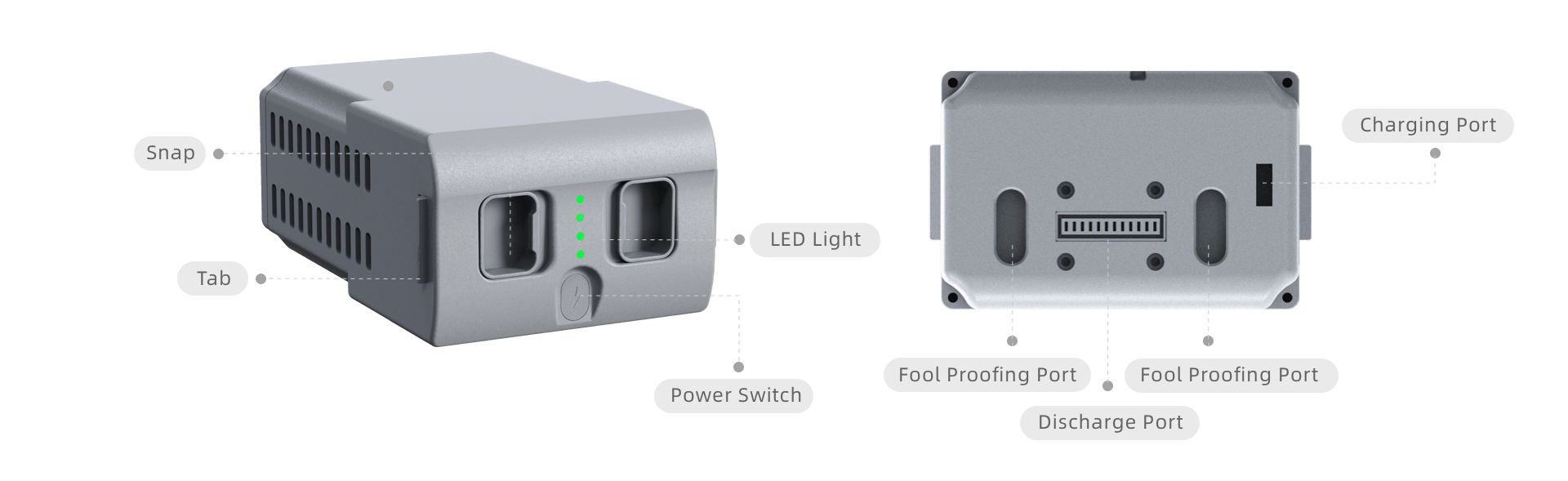

Battery Components List
Product Parameters
Rated Voltage
DC 28.8V
Charge Limit Voltage
DC 33.6V
Charging Current
3.5A～9A
Rated Capacity
8000mAh 236.8Wh (Standard Version)
15000mAh 432Wh (Long Endurance Version)
The Executive Standard
IEC 62133-2
Size
120mm * 80mm * 182mm
