PiPER
PiPER from AgileX Robotics
Beschreibung
PiPER

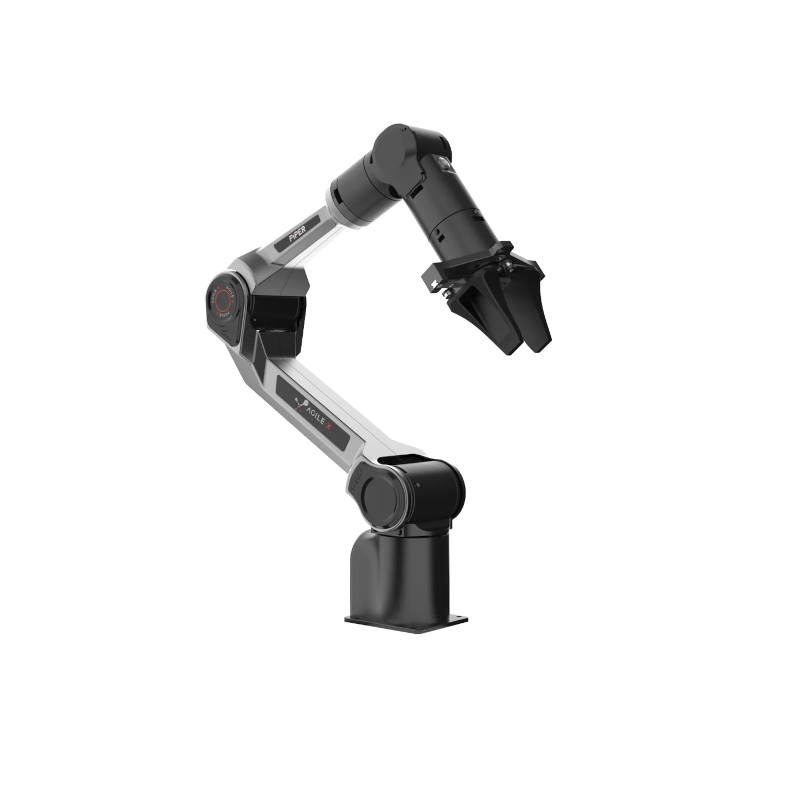

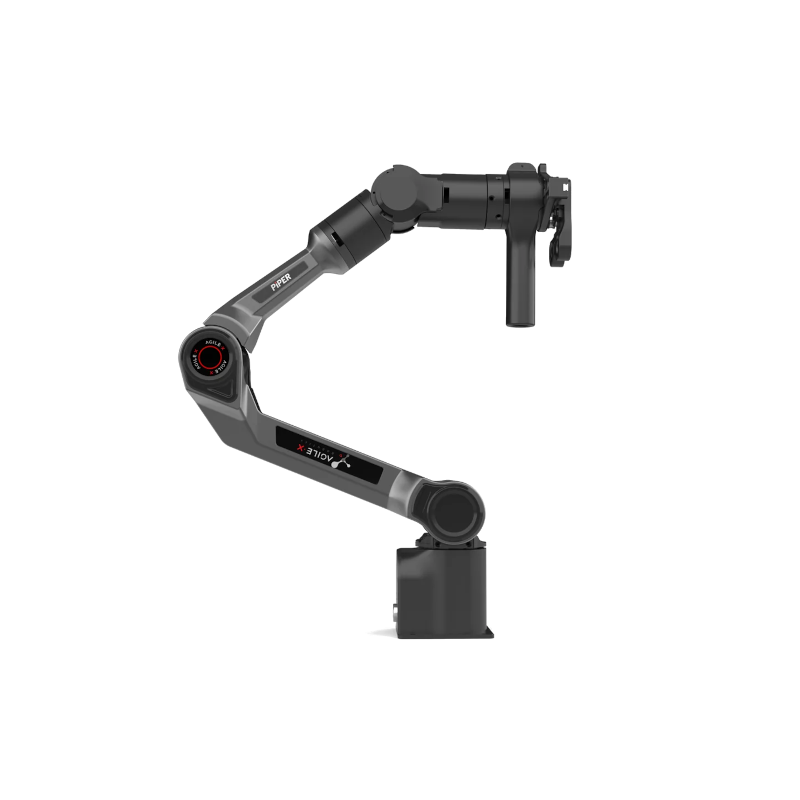

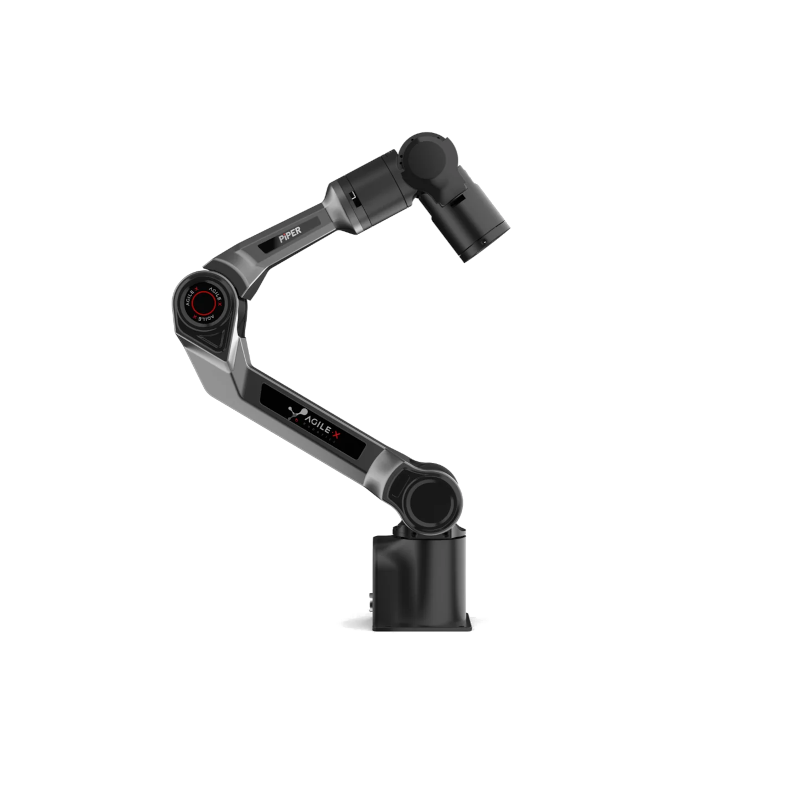

PiPER is a lightweight robotic arm with six integrated joint motors for smooth, precise control. Weighing just 4.2kg, it easily handles a 1.5kg payload and is made from durable yet lightweight materials for versatile use across various environments.
1.5 KG |
626 MM |
0.1 MM |
Playload |
Reach |

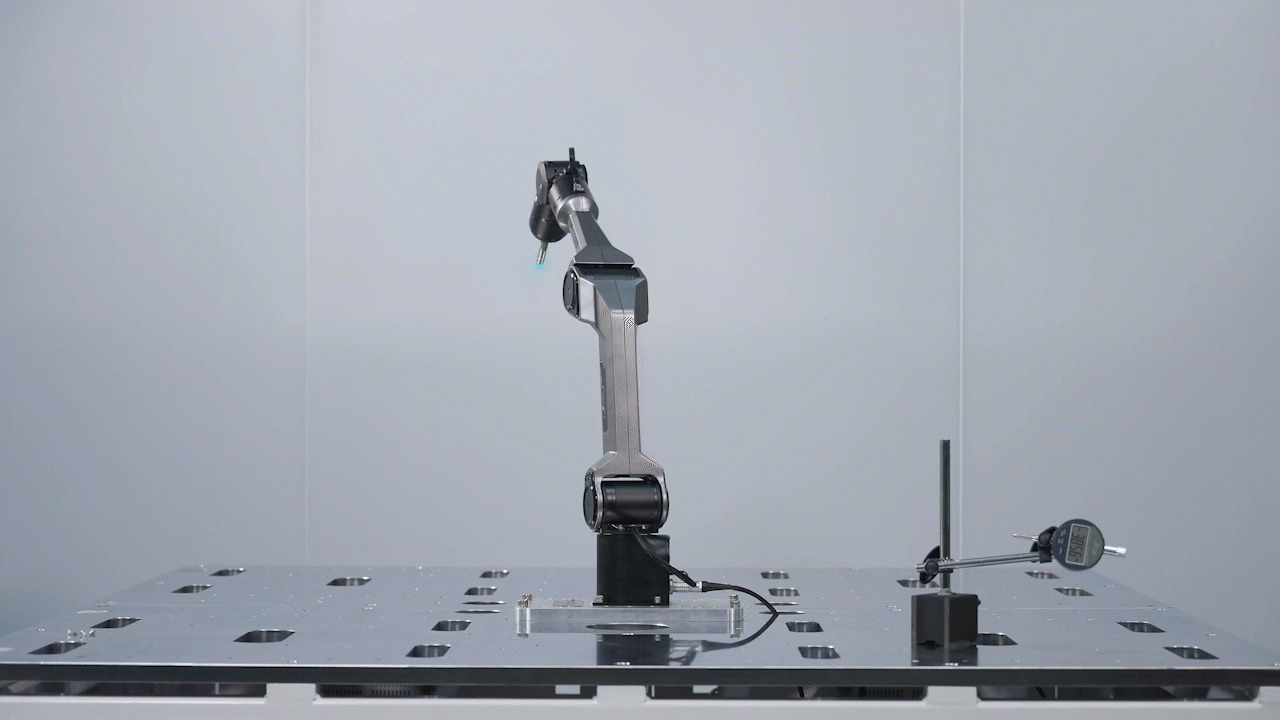

Repeatability |

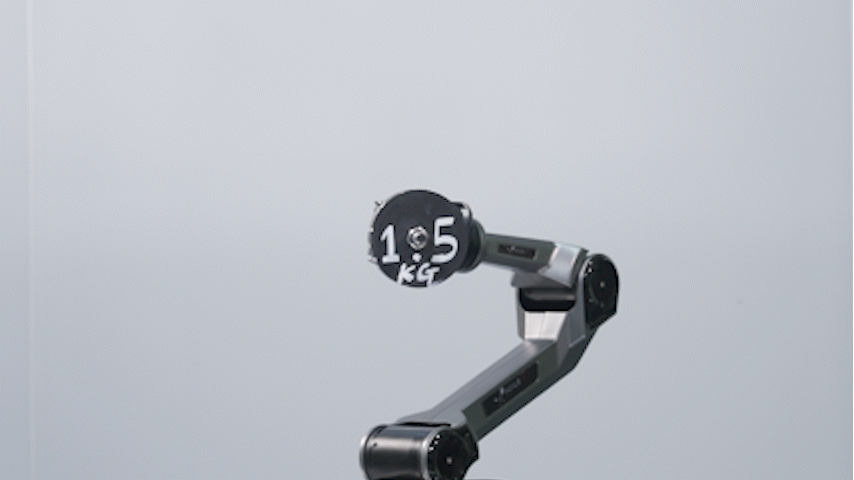

Lightweight and Stable PayloadPiPER is compact powerful, supporting a stable 1.5kg payload while maintaining agility in motion.
|
 |
|
|
Precision ControlEquipped with advanced joint motors and path planning, PiPER delivers precise and smooth operation, perfect for detailed tasks.
|

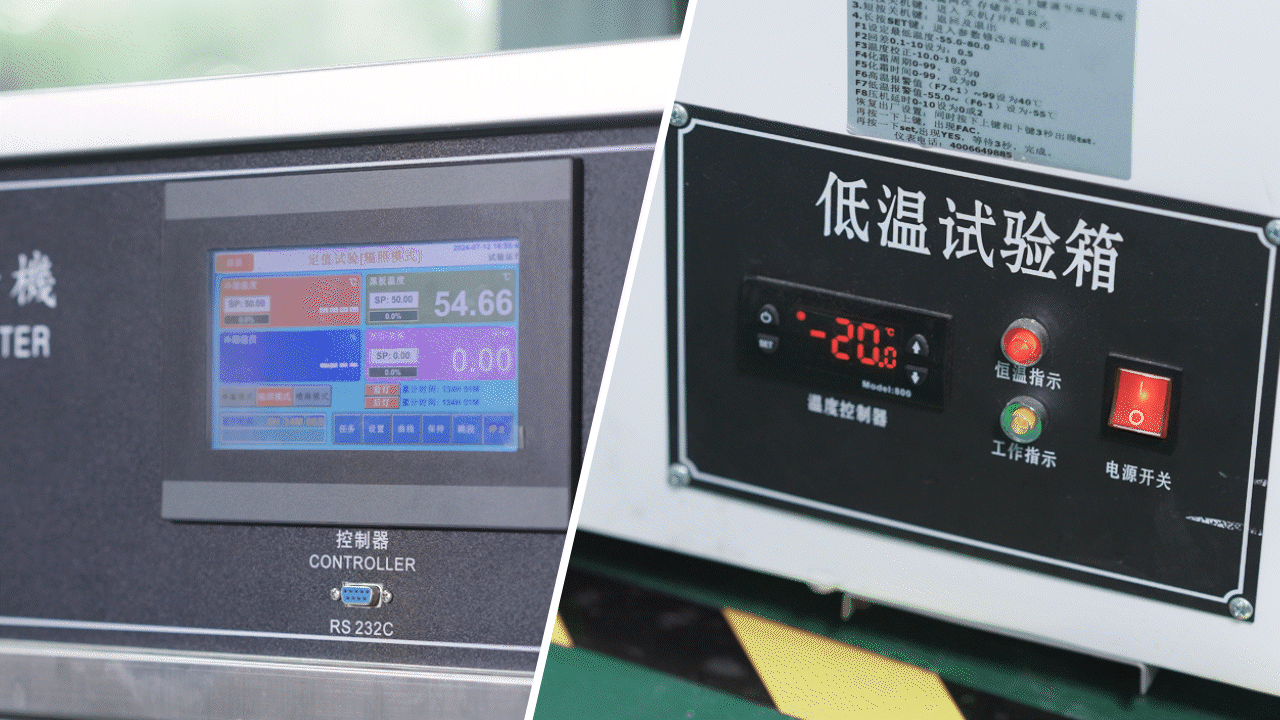

Harsh Environment AdaptabilityDesigned to operate in extreme conditions ranging from -20℃ to 50℃, PiPER performs reliably in tough environments.
|
 |
|
|

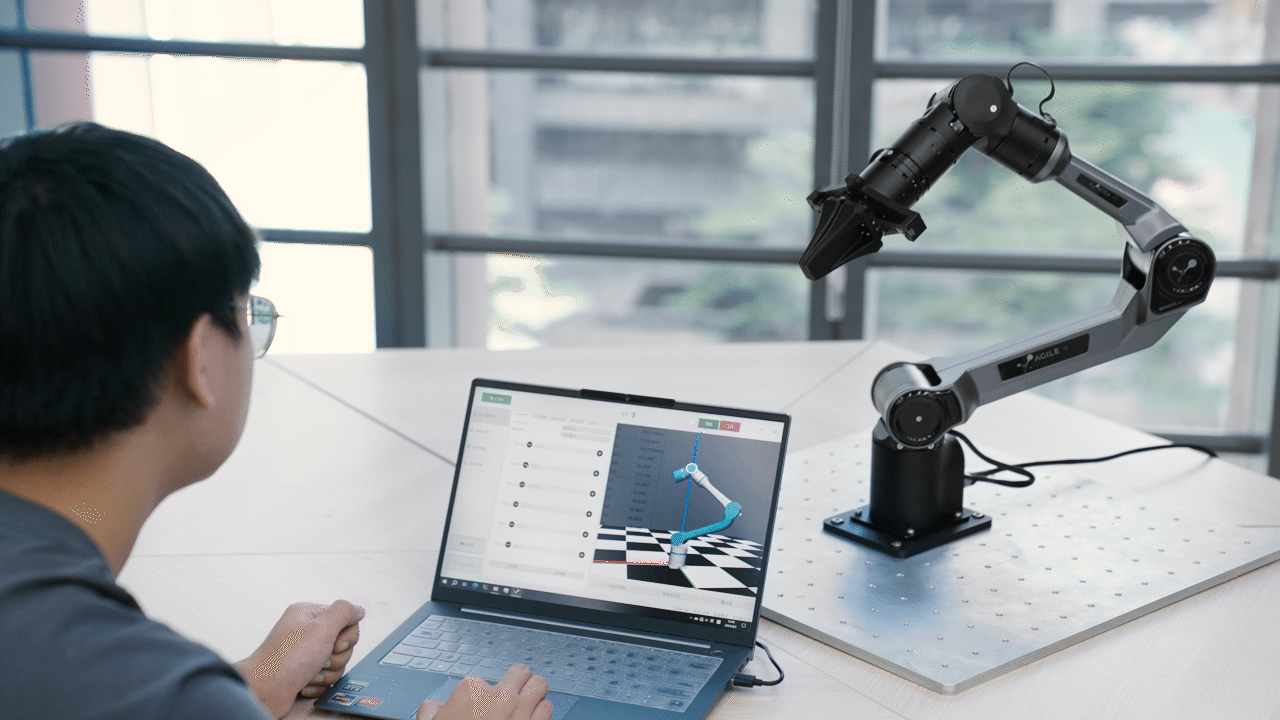

Intuitive User InterfaceThe modern tablet-based interface leverages a powerful system, enabling users to effortlessly build and control their applications.
|
Open Source SupportPiPER can be controlled via Python API and supports both ROS1 and ROS2, offering flexibility for developers and ensuring smooth integration across a variety of projects.
|
 |
|
SPECIFICATIONS |
|
||
|
DOF |
6 |
MATERIAL |
ALUMINIUM ALLOY BODY, POLYMER SHELL |
|
PAYLOAD |
1.5KG | CONTROLLER | INTEGRATED |
|
WEIGHT |
4.2KG | COMMUNICATION | CAN |
|
REPEATIBILITY |
±0.1MM | PROGRAMMING | DRAG TEACHING/OFFLINE TRAJECTORY/API/PC |
|

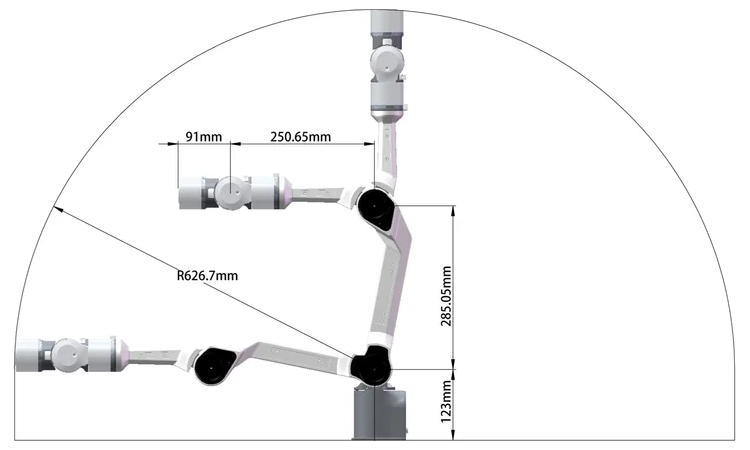

REACH |
626MM | EXTERNAL INTERFACE | POWER*1,CAN*1 |
|
INPUT VOLTAGE |
DC24V | BASE INSTALLATION DIMENTIONS | 70MM*70MM*M5*4 |
